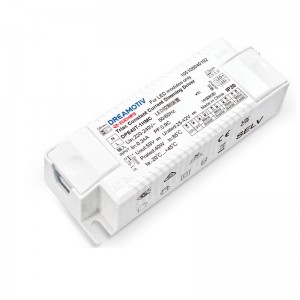

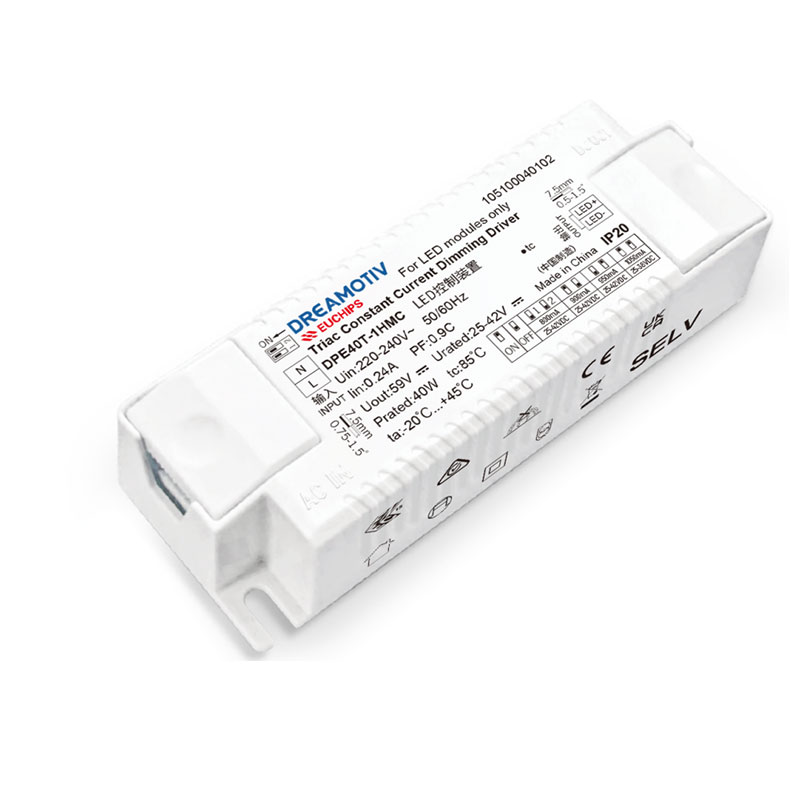

40W 800~1050mA*1ch Phase-cut CC Driver DPE40T-1HMC
40W 800~1050mA*1ch Phase-cut CC Driver DPE40T-1HMC
DPE40T-1HMC is a 40W Triac-dimmable constant current LED driver, featuring a compact body design with a square-shaped housing. It is widely used in downlights, spotlights, and panel lights.Support cutting-edge phase-cutting and trailing edge phase-cutting dimming.
Features
- Single-channel constant current output
- Short circuit, overload, no-load protection, V0 flame-retardant housing
- High efficiency up to 87%
- Removable end-cover design for easy installation in narrow spaces
- 50,000-hour lifespan with a 5-year warranty
- IP20 protection rating, suitable for indoor Class II luminaires
- Flicker-free isolation
Technical Parameters
| Model | DPE40T-1HMC | |
|
Input |
Rated input voltage | 220VAC-240VAC |
| Input voltage range | 198VAC-264VAC | |
| Input Current | 0.24Amax@230VAC | |
| Input Frequency range | 50/60Hz | |
| Power factor | 0.9C@230VAC, full load | |
| Effciency | 87%@230VAC, full load | |
| THD | <25%@230VAC, full load | |
| Inrush current | Cold start, 2.5A@230VAC 38.2us, | |
| Leakage current | ≤0.7mA | |
|
Output |
Current/Voltage/Power | 800mA/25-42VDC/33.6W 900mA/25-42VDC/37.8W 950mA/25-42VDC/40W 1050mA/25-38VDC/40W |
| Current Accuracy | ±8% | |
| Output Channel | 1 | |
| Current Overshoot | ±5% | |
| Output ripple | High frequency>1K HZ: ±5% | |
| Low frequency<120 HZ: ±5% | ||
| No load output voltage | 59VDC Max | |
| CIE-SVM | ≤0.4 | |
| IEC-Pst | ≤1 | |
| Turn on time | <2s, @230Vac (When the light begins to shine) | |
| Protection | Dimming Type | Triac Linearity / Logarithm curve @230V 50Hz |
| Dimming range | 5％-100％ | |
| Dimming depth | 5% | |
| Flicker | Complies with IEEE Std 1789-2015 standard | |
| Protection | Short-circuit | Shut down output, Auto-recovery after Fault Clearance |
| Over Current | Load power ≥130% protection, Current Drop, Auto-recovery after Fault Clearance | |
| No-load | Shut down output, Auto-recovery after Fault | |
|
Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | |
| Safety Standards | CB (CBmember states) IEC61347-1，IEC61347-2-13; CE (European Union) EN61347-1，EN61347-2-13，EN62384 | |
| RCM (Australia) AS 61347-1，AS 61347-2-13;ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working Temp | -20℃~45℃ |
| Storage Temp | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
|
Others |
tc | 85℃ for safety |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 115*41*28mm(L*W*H) | |
| Packing(weight) | Net weight: 185g±5%/PCS; 100PCS/Carton; 19.0kg±5%/Carton; Carton Size: 472*218*222mm(L*W*H) | |
| Noise | ≤30dB(A) @ 20-100cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
