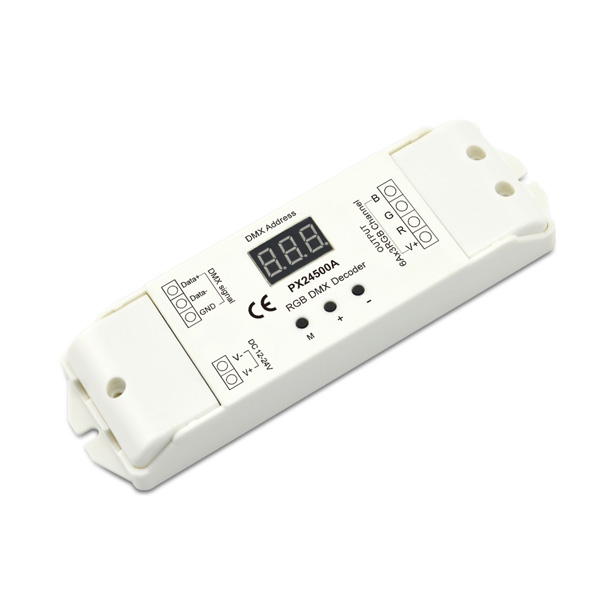

8A*3ch 12-24VDC Constant Voltage DMX Decoder PX24500A

Short Description:

  • Item No.: PX24500A
  • Input Voltage: 12-24
  • Output Current: 8A*3CH
  • Output Voltage: 12-24
  • Output Power: 288-576
  • Dim Mode: DMX512/1990
  • G.W.: 160
  • Size: 168*51*22

Product Detail

Product Tags

8A*3ch 12-24VDC Constant Voltage DMX Decoder PX24500A

Summarize
Welcome to use PX series DMX512 decoder & driver. PX series adopt the advanced micro-computer control technology and converted the DMX512/1990 digital signal widely used in international to the analog control signal. 1~3 channels output for option and each channel able to achieve 256 gradations of controling. It is mainly used for the controlling of buildings & lights applied LED.

Feature
1. Meets DMX512/1990
2. With 3 channels output and Max.8A/CH output
3. Decoder can Diagnose & Indicate DMX512 signal status(Not Connected, Pause, Normal), easy for using
4. Can set the DMX address more easily by Keys
5. With the light color selected mechanism, and be able to control the light with 1~3 colors
6. 256-level brightness,full-color control,with control system,can express perfect effect
7. Use Logarithmic dimming curve, smooth dimming effect
8. For customer setup and use easily, the default address code is 1

Technical Parameter



Product Name LED RGB Constant Voltage DMX Decoder
Item PX24500A
Decode Channels 3 Channels
Input Signal DMX-512/1990 digital signal
Output Signal can drive 8A max(Each CH.)
Power Supply DC 12~24V
Power Dis. <1W
Power Output <576W(24V);<288W(12V)
Operating Temp. -20~50℃
Size 168(mm)*51(mm)*22(mm)
Weight 160g
