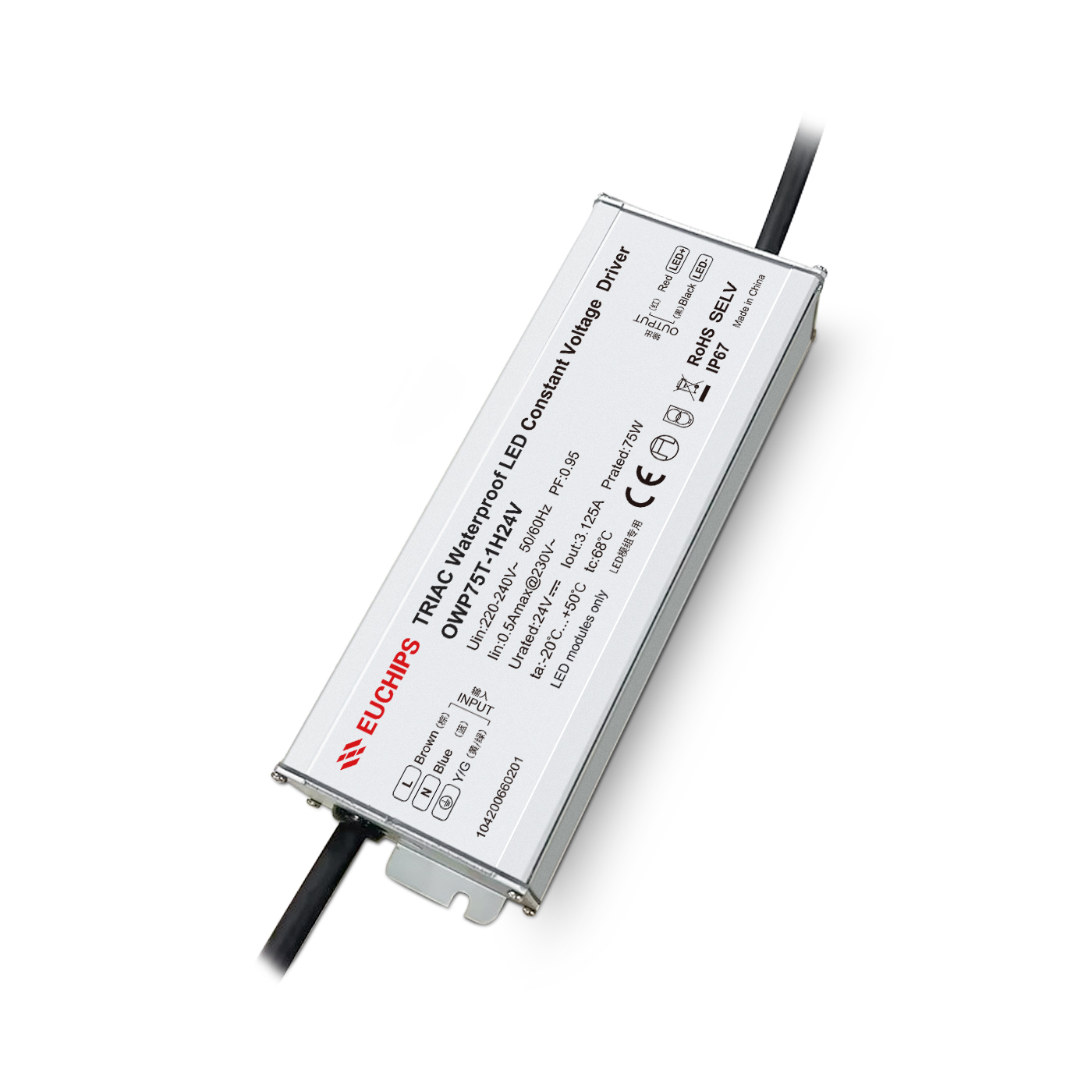

75W 24VDC Phase-cut Waterproof CV Driver OWP75T-1H24V
75W 24VDC Phase-cut Waterproof CV Driver OWP75T-1H24V
OWP75T-1H24V is a dimming driver that provides constant voltage output and supports leading-edge phase tangency And trailing edge tangent dimmer, the dimming curve is smooth.
Features
· Single channel constant voltage DC 24V output
· Input range 220VAC~240VAC
· Voltage input with active PFC, full power output
· Support leading/trailing edge tangent dimming
· Ultra-thin design, waterproof IP67, efficiency up to ≥87%
· Smooth dimming effect, no interval
· Protection: lightning protection, short circuit protection, overload protection,over current protection
· Suitable for LED constant voltage lamps, such as LED modules, strips, strips, etc
Technical Parameters
|
Model |
OWP75T-1H24V | |
|
Input |
Efficiency | ≥87%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | ≥0.95@230VAC, full load | |
| THD | <10%@230VAC, full load | |
| Standby power | <2.5W | |
| Turn on delay Time | ≤ 1.5 s, at230Vac (When the light begins to shine) | |
| Current | 0.5Amax@230VAC | |
| Inrush Current/ / | Cold start,77A@230VAC 92us | |
|
Output |
Voltage Current Power | 24VDC / 3.125A / 75W |
| Ripple Voitage | ±3% | |
| Output Voitage | ±5% | |
| No load output voltage | 25.2V max | |
| Channel | 1 | |
| Protection | Short circuit | Close output, recovers automatically after fault removed |
| Over load | Reduce current hiccup protection, troubleshooting normal output | |
| Over Current | Reduce current hiccup protection, troubleshooting normal output | |
| Safety&EMC | Surge | L-N 1000VAC L-N-PG 3000VAC |
| Withstand Voltage | I/P-O/P:2000VAC/1min/<5mA I/P-PG:1500VAC/1min/<5mA/ O/P-PG:500VAC/1min/<5mA | |
| Safety standards | EN61347-1 EN61347-2-13 | |
| Insulation Resisance | 5MΩ | |
| Function | Dimming mode | Triac phase cut (40-240VAC) |
| Dimming range | 0.3%-100% | |
| Dimming curve | Logarithm | |
| Working Temp. | -20℃~+50℃ | |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 68℃ | |
| Material | Metal | |
|
Others |
IP Rating | IP67 |
| Lifetime | 50,000h@tc:50℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 670g±5%/PCS; 20PCS/Carton; 13.9kg±5%/Carton; Carton Size: 347*233*214mm(L*W*H) | |
| Dimension | 187*64*33mm(L*W*H) | |
