Features
- Supports 6-channel 0/1-10V dimming, and each circuit is equipped with 10A relay synchronous control to turn it on and off. The buttons can be manually controlled to control the switch and dimming.
- Control types: Statistical total ON time, Status response, Status recovery, Staircase light, Flashing light, Scene control, Dimming upper limit, Dimming lower limit, Sequence control, Threshold switch, Heating control (PWM)
Technical Parameters
| Product Model |

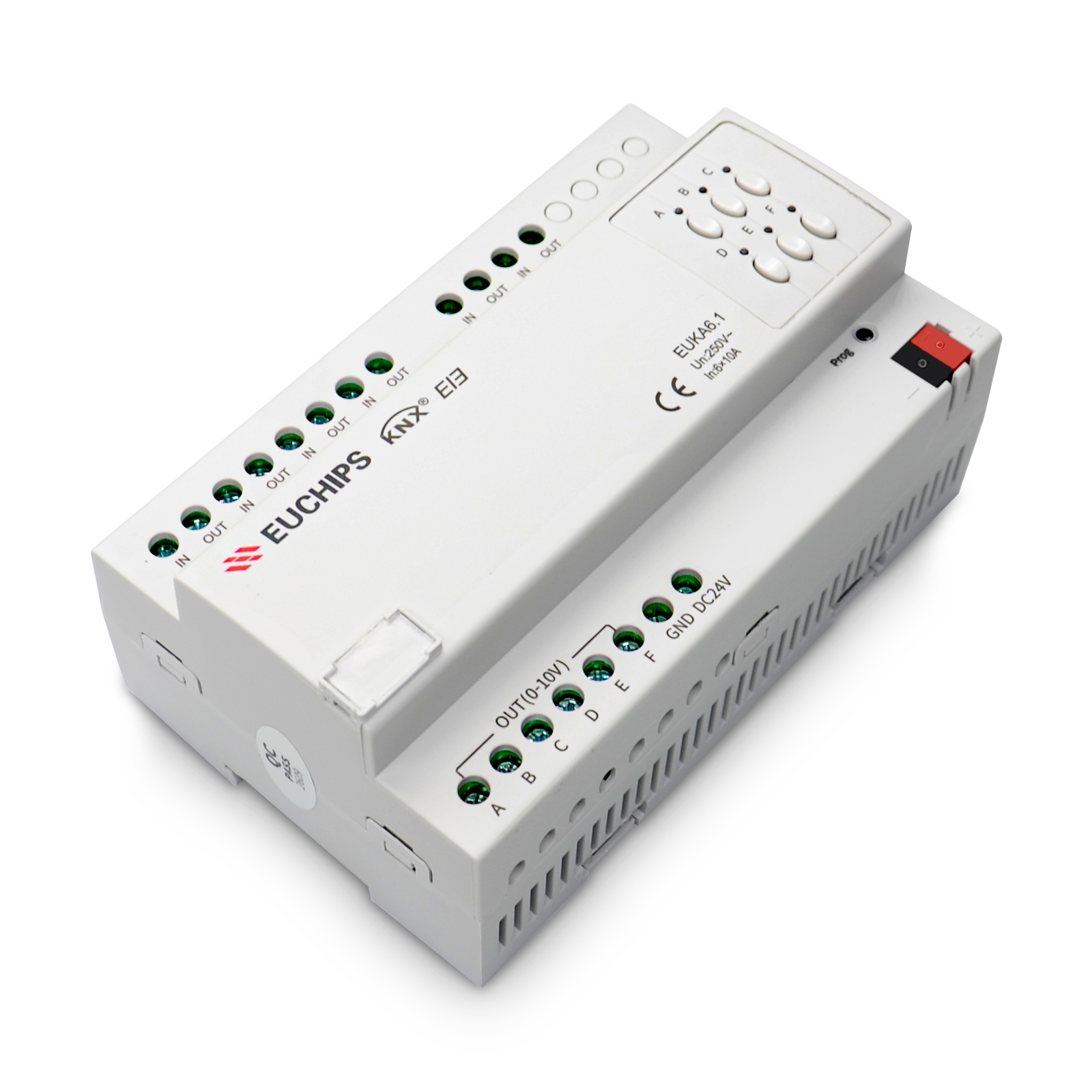

EUKA6.1 |
| Rated voltage |
30VDC |
| Rated current |
15mA/30VDC |
| Input voltage |
100V/240VAC~50/60Hz |
| Output channel |
6CH, 10A/CH |
| Dimming output |
0-10VDC, 24mA/CH |
| Communication |
KNX/EIB |
| Shut-off way |
Impulse type self-locking relay shut-off way |
| Cable diameter of KNX terminal |
0.6-0.8mm |
| Electrical life time |
>100,000 hours |
| Mechanical life time |
>100,000 hours |
| Working temperature |
-5°C~45°C |
| Working relative humidity |
≤90%RH |
| Storage temperature |
-20°C~60°C |
| Storage relative humidity |
≤93%RH |
| Ingress protection grade |
IP20, EN 60529 |
| Installation |
35mm DIN rail mounting |
| Installation size |
144mm×64mm×90mm |
| Net weight |
449g |
| Housing material |
Nylon |
