  • 0-10V Analog Signal Amplifier EUC602

    0-10V Analog Signal Amplifier EUC602

    0-10V Analog Signal Amplifier EUC602 Features Amplify driving ability of 0-10V signal, or convert PWM, passive signal to 0-10V signal Support active and passive 0-10V color temperature (adjustable resistance) and PWM signal input High quality amplifier, output current of 150mA Used for the situation that the main controller’s driver ability isn’t enough Technical Parameters Model EUC602 Output Accuracy Channels 2 Voltage 0-10VDC Current 150mA Input Voltage 200-240VDC Signal 0-10V...
  • 12-24V 16A*2ch Constant Voltage Analog Dimmer DIM-S2L16V

    12-24V 16A*2ch Constant Voltage Analog Dimmer DIM-S2L16V

    12-24V 16A*2ch Constant Voltage Analog Dimmer DIM-S2L16V Features · Support 3-in-1 dimming function(0-10V /1-10V active signal, Adjustable resistance, PWM) · Support dimming mode selection · Support the short circuit, over current protection and alarm function · Logarithmic dimming curve · Built-in CCT adjust mode, the user can adjust color temperature without changing the output power · For adjusting the brightness/ color temperature of LED strip Technical Parameters Input Voltage 12-24V ...

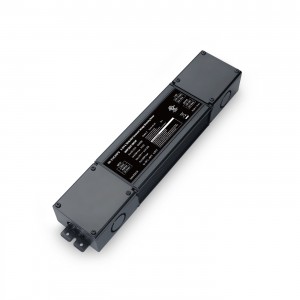

  • 30W 24VDC 0/1-10V & Triac/ELV Waterproof CV Driver UWP30AT-1W24V

    30W 24VDC 0/1-10V & Triac/ELV Waterproof CV Driver UWP30AT-1W24V

    Features Single channel constant voltage output, Output Current 1.25A Max Input Voltage Range 108-305Vac Support 0/1-10V ,Potentiometer,PWM,Triac/ELV Dimming Dimming effect smooth, flicker free TRIAC and ELV dimming at 120 Vac only 100% output when no dimming signal input, can be used as normal power supply Protection: Overload; short circuit; Overcurrent Class 2 Output Safety according to UL8750 &UL 1310 Suitable for Dry , Damp & Wet Locations Technical Parameters Model UWP30AT...
  • 60W 24VDC 0/1-10V & Triac/ELV Driver Waterproof CV Driver UWP60AT-1W24V

    60W 24VDC 0/1-10V & Triac/ELV Driver Waterproof CV Driver UWP60AT-1W24V

      Features · Single channel constant voltage output, Output Current 2.5A Max · Input Voltage Range 108-305Vac · Support 0-10V ,Potentiometer,PWM,Triac/ELV Dimming · TRIAC and ELV dimming at 120 Vac only · 0-10V Dimming range of 0.1-100%, and dimming effect smooth, flicker free · 100% output when no dimming signal input, can be used as normal power supply · Protection: Overload; short circuit; Overcurrent · Safety according to UL8750 &UL 1310 · Suitable for Dry , Damp & Wet Locations T...
  • 30W 100~1050mA*1ch 0/1-10V CC Driver EULP30AS-1WPC

    30W 100~1050mA*1ch 0/1-10V CC Driver EULP30AS-1WPC

     30W 100~1050mA*1ch 0/1-10V CC Driver EULP30AS-1WPC Features • Supports tri-mode dimming (0/1-10V active signal, adjustable resistor, PWM signal) • Wide input voltage range: 120VAC ~ 277VAC • Short-circuit protection, overload protection, over-voltage protection, Temperature protection(100±10℃) • Auxiliary power supply: 12VDC, 200mA max. • 50,000-hour lifespan @ Tc=85℃, 5-year warranty • Driver applied in dry and damp environments Programming Features • Drive Current (10mA adjustment) • Dimmi...
  • 50W 400~1400mA*1ch 0/1-10V CC Driver EULP50AS-1WPC

    50W 400~1400mA*1ch 0/1-10V CC Driver EULP50AS-1WPC

    50W 400~1400mA*1ch 0/1-10V CC Driver EULP50AS-1WPC Features • Supports tri-mode dimming (0/1-10V active signal, adjustable resistor, PWM signal) • Wide input voltage range: 120VAC ~ 277VAC • Short-circuit protection, overload protection, over-voltage protection, Temperature protection(100±10℃) • Auxiliary power supply: 12VDC, 200mA max. • 50,000-hour lifespan @ Tc=85℃, 5-year warranty • Driver applied in dry and damp environments Programming Features • Drive Current (10mA adjustment) • Dimmin...
  • 85W 700~2400mA*1ch 0/1-10V CC Driver EULP85AS-1WPC

    85W 700~2400mA*1ch 0/1-10V CC Driver EULP85AS-1WPC

    85W 700~2400mA*1ch 0/1-10V CC Driver EULP85AS-1WPC Features • Supports tri-mode dimming (0/1-10V active signal, adjustable resistor, PWM signal) • Wide input voltage range: 120VAC ~ 277VAC • Short-circuit protection, overload protection, over-voltage protection, Temperature protection(100±10℃) • Auxiliary power supply: 12VDC, 200mA max. • 50,000-hour lifespan @ Tc=85℃, 5-year warranty • Driver applied in dry and damp environments Programming Features • Drive Current (10mA adjustment) • Dimmin...
  • 96W 700~2400mA*1ch 0/1-10V CC Driver EULP96AS-1WPC

    96W 700~2400mA*1ch 0/1-10V CC Driver EULP96AS-1WPC

    96W 700~2400mA*1ch 0/1-10V CC Driver EULP96AS-1WPC Features • Supports tri-mode dimming (0/1-10V active signal, adjustable resistor, PWM signal) • Wide input voltage range: 120VAC ~ 277VAC • Short-circuit protection, overload protection, over-voltage protection, Temperature protection(100±10℃) • Auxiliary power supply: 12VDC, 200mA max. • 50,000-hour lifespan @ Tc=85℃, 5-year warranty • Driver applied in dry and damp environments Programming Features • Drive Current (10mA adjustment) • Dimmin...
  • 150W 500~750mA*1ch 0/1-10V CC Driver ANS150AS-1BMC-OP

    150W 500~750mA*1ch 0/1-10V CC Driver ANS150AS-1BMC-OP

    150W 500~750mA*1ch 0/1-10V CC Driver ANS150AS-1BMC-OP Features • Input voltage range: 90-305Vac • Support isolated dimming(0-10V active signal, PWM signal, resistor) • Adjustable Output Current(A0C) with Potentiometer • High Efficiency up to 96.0% • Auxiliary Power: 12VDC, 200mA • Support for external light control switch • Protection: IUVP, SCP, OVP, OTP • Input surge protection: Differential mode:6kV, Common mode:6kV(ANSI/C82 .77-5-2017) • 5-year warranty • Safety according to UL8750 Models...

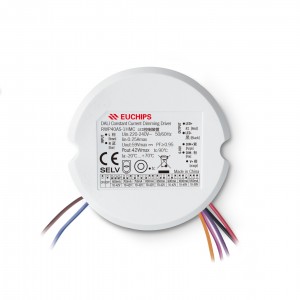

  • 40W 600~1050mA 0-10V CC Driver RWP40AS-1HMC

    40W 600~1050mA 0-10V CC Driver RWP40AS-1HMC

    40W 600~1050mA 0-10V CC Driver RWP40AS-1HMC RWP40AS-1HMC is a 40W 0-10V dimming constant-current LED driver equipped with a auxiliary power supply, an 8-position current DIP switch and ultra-wide output voltage of 10-42V. With its compact body design and round shell, it is widely used in downlights and spotlights. Features Single-channel constant current output Supports 12V 100mA auxiliary source, and can be customized to 5V 100mA Input voltage range: 198VAC – 264VAC Double-stage flick...
  • 200W 650~1000mA*1ch 0/1-10V CC Driver ANS200AS-1BMC-OP

    200W 650~1000mA*1ch 0/1-10V CC Driver ANS200AS-1BMC-OP

    200W 650~1000mA*1ch 0/1-10V CC Driver ANS200AS-1BMC-OP Features • Input voltage range: 108-380Vac • Supports isolated dimming (0-10V active signal, PWM signal, resistor) • Adjustable Output Current (AOC) with Potentiometer • High Efficiency up to 96.0% • Auxiliary Power: 12VDC, 200mA • Support for external DIP switches to adjust power • Support for external light control switch • Protection: IUVP,SCP,OVP, OTP • Input surge protection: Differential mode: 6kV, Common mode: 6kV(ANSI/C82 .77-5-20...
  • 250W 700~1200mA*1ch 0/1-10V CC Driver ANS250AS-1BMC-OP

    250W 700~1200mA*1ch 0/1-10V CC Driver ANS250AS-1BMC-OP

    250W 700~1200mA*1ch 0/1-10V CC Driver ANS250AS-1BMC-OP Features • Input voltage range: 108-380Vac • Supports isolated dimming (0-10V active signal, PWM signal, resistor) • Adjustable Output Current (AOC) with Potentiometer • High Efficiency up to 96.5% • Auxiliary Power: 12VDC, 200mA • Support for external DIP switches to adjust power • Support for external light control switch • Protection: IUVP,SCP,OVP, OTP • Input surge protection: Differential mode: 6kV, Common mode: 6kV(ANSI/C82 .77-5-20...
