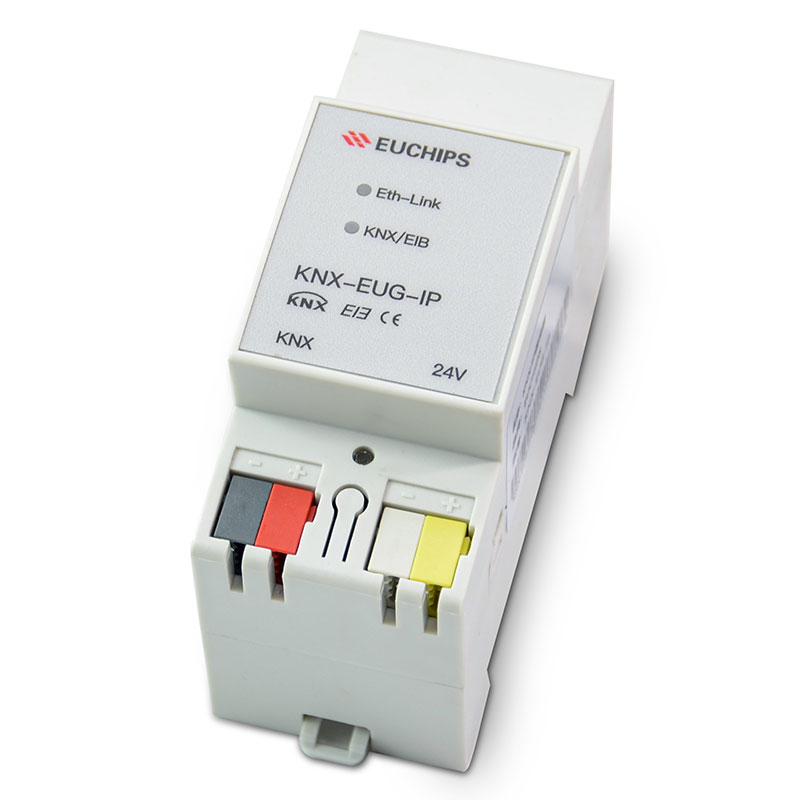

IP Router KNX-EUG-IP
IP Router KNX-EUG-IP
Features
KNX-EUG-IP is a KNX IP router that integrates the functions of KNXnet/IP gateway and KNX router. Its main features
are as follows:
· It follows the standard KNXnet/IP protocol and can provide standard bus device configuration, management, download and other functions as a KNXnet/IP server
· Supports up to 5 clients for connection and communication
· The router function can be used as a KNX branch coupler, area coupler and multi-area coupler
· With a communication rate of 100M, it is suitable for use as a KNX high-speed backbonecommunication interface
· The large-capacity cache can effectively solve the packet loss caused by a large number of message bursts
· Low power consumption, stable and reliable
Technical Parameters
| Product model | KNX-EUG-IP |
| Bus voltage | 21-30VDC, powered on the KNX bus |
| Bus current | ≤12mA |
| Bus power | <360mW |
| Auxiliary voltage | 24V |
| Connect | Connect the red and black wires to ”-KNX+”, and the yellow and white wires to” -24+ ”. |
| Shell material | PA66 |
| Size | 90mm x 38mm 64mm |
| Weight | 0.1KG |
| Installation method | 35mm DIN rail mounting |
| Working temperature | 5°C- 45°C |
| Storage temperature | - 25°C…+55°C |
| Transportation temperature | - 25°C-…+70°C |
| Relative humidity | Max 90% |
